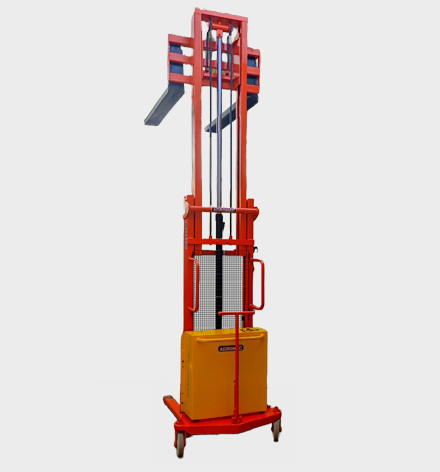

Semi Electric Stacker
specification for MODEL AGBST1030A
| S.no | Specification | UNITS / DIMENSIONS |
|---|---|---|
| 1 | Capacity | 1000 Kgs |
| 2 | Lifting Height (H) | 3000 mm |
| 3 | Fork Size | 1150 * 150 mm |
| 4 | Fork Arm Width | 600 mm |
| 5 | Load Center | 400 mm |
| 6 | Min Turning Radius (R) | 1450 mm |
| 7 | Overall Length (A) | 1820 mm |
| 8 | Overall Width (B) | 910 mm |
| 9 | Overall Height (H1) | 2080 mm |
| 10 | Mast Height Closed | 3000 mm |
| 11 | Lifting Speed Loaded | 0.11 m/sc |
| 12 | Lifting Speed Unloaded | 0.17 m/sc |
| 13 | Lowering Speed Loaded | 0.26 m/sc |
| 14 | Wheels | Nylon / PU |
| 15 | Battery Type | Traction Type lead Acid 24 Volt |
| 15 | Battery Charger | In built Battery Charger |
| 15 | Net weight Approx | 360 kg |
| 15 | Battery | 1 Traction Type LED Acid 24 Volt Battery |
specification for MODEL AGBST1515
| S.no | Specification | UNITS / DIMENSIONS |
|---|---|---|
| 1 | Capacity | 1500 Kgs |
| 2 | Lifting Height (H) | 1500 mm |
| 3 | Fork Size | 1150 * 150 mm |
| 4 | Fork Arm Width | 600 mm |
| 5 | Load Center | 400 mm |
| 6 | Min Turning Radius (R) | 1450 mm |
| 7 | Overall Length (A) | 1820 mm |
| 8 | Overall Width (B) | 910 mm |
| 9 | Overall Height (H1) | 2080 mm |
| 10 | Mast Height Closed | 3000 mm |
| 11 | Lifting Speed Loaded | 0.11 m/sc |
| 12 | Lifting Speed Unloaded | 0.17 m/sc |
| 13 | Lowering Speed Loaded | 0.26 m/sc |
| 14 | Wheels | Nylon / PU |
| 15 | Battery Type | Traction Type lead Acid 24 Volt |
| 15 | Battery Charger | In built Battery Charger |
| 15 | Net weight Approx | 360 kg |
| 15 | Battery | 1 Traction Type LED Acid 24 Volt Battery |
