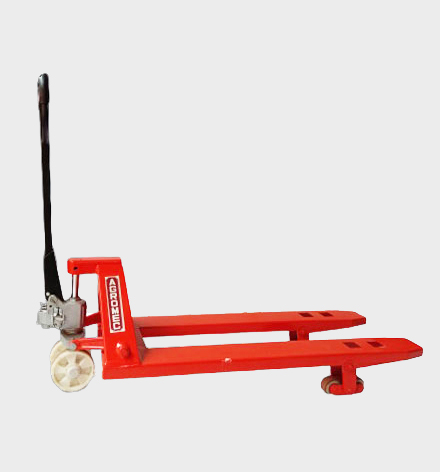

Commercial Duty Pallet Truck

Model	AGLW -250 (Commercial Duty Pallet Truck)
Capacity	2500 Kg.
Lift	122 mm
Overall Width	550 mm
Fork Length	1220 mm
Fork Width	152 mm
Front Wheels	175 x 50 mm
Rear Wheels	Dia 78 mm
Min. Pallet Gap	80 mm
Release System	Hand & Foot Lever Both
Plate Thickness	4 + Paint Thickness mm
Self Weight	98 Kgs

Comparison

MODEL NO:	AQST-250 (Heavy Duty) Make in INDIA	AGLW-250 (Commercial Duty Pallet Truck) Make in INDIA
Self-Weight (Approx.)	160 Kgs.	98 Kgs. Max.
Wheels Options	UHMW Nylon / CI / Steel	PU / Nylon
Standard Wheels	UHMW Solid Wheels	Wear & Tear Nylon
Load Wheels Frame	M.S Heavy Duty With Bushes	M.S Heavy Duty With Bushes
Release Pedal	By Foot Lever With Cartilage System (No Maintenance)	By Foot Lever & Hand Lever Type (No Maintenance)
Wearing Points	Special Bushes Provided	Bushes Provided
Steering Handle	Very Sturdy Heavy Duty	Simple With Lever
Bearings	6207 / 6205 With MS Dust Covers	6205 / 6204
PINS / Rear Axle	Hard & Ground to Mirror Finish EN-9	Hard & Ground to Mirror Finish EN-9
Cap Steering	Bearing 51106 With Solid M.S Extra Cap	Bearing 51106
Compression Rods	Solid M.S Heavy Square Steel Rods	Solid M.S Square
Plate Thickness	5 MM + Paint Thickness	4 MM + Paint Thickness
Manifold	Heavy / Solid Without Spring (No Maintenance)	Built in Without Springs
Cross (Steering)	Heavy Duty Solid M.S With Bearings 6212 & 51112	Heavy Duty Solid M.S With Bearing 6212 & 51112
Hydraulic	M.S Heavy Duty Cylinder Dia 35 mm Piston Rod, Bronze Piston, High Quality Seals, Spring Loaded Bushes, With Spring (Easy Maintenance)	Dia 31.5 mm Piston Rod, M.S Piston, High Quality Seals, No Bushes, No Spring (Hydraulic)
