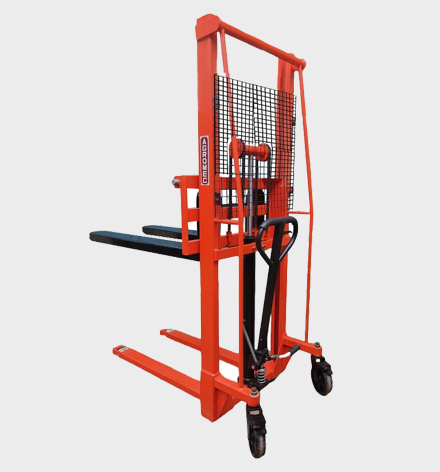

Manual Stacker
specification for MODEL AGST1015B
| S.no | Specification | UNITS / DIMENSIONS |
|---|---|---|
| 1 | Load Capacity | 1000 Kgs |
| 2 | Lifting Height | 1500 mm |
| 3 | Fork Length | 1150 mm |
| 4 | Fork Arm Width | 770 |
| 5 | Outside Fork Spread | 300 - 850 mm |
| 6 | Inside Fork Spread | Adjustable |
| 7 | Maximum Fork Height | 1600 mm |
| 8 | Minimum Fork Height | 85 mm |
| 9 | Ground Clearance | 35 mm |
| 10 | Fork Width | 150 mm |
| 11 | Overall Height in Closed Position | 2000 mm |
specification for MODEL AGST1515A
| S.no | Specification | UNITS / DIMENSIONS |
|---|---|---|
| 1 | Load Capacity | 1500 Kgs |
| 2 | Lifting Height | 1500 mm |
| 3 | Fork Length | 1150 mm |
| 4 | Fork Arm Width | 770 |
| 5 | Outside Fork Spread | 300 - 850 mm |
| 6 | Inside Fork Spread | Adjustable |
| 7 | Maximum Fork Height | 1600 mm |
| 8 | Minimum Fork Height | 85 mm |
| 9 | Ground Clearance | 35 mm |
| 10 | Fork Width | 150 mm |
| 11 | Overall Height in Closed Position | 2000 mm |
specification for MODEL AGST2015
| S.no | Specification | UNITS / DIMENSIONS |
|---|---|---|
| 1 | Load Capacity | 2000 Kgs |
| 2 | Lifting Height | 1500 mm |
| 3 | Fork Length | 1000 mm |
| 4 | Fork Arm Width | 7620 |
| 5 | Outside Fork Spread | 300 - 850 mm |
| 6 | Inside Fork Spread | Adjustable |
| 7 | Maximum Fork Height | 2000 mm |
| 8 | Minimum Fork Height | 90 mm |
| 9 | Ground Clearance | 35 mm |
| 10 | Fork Width | 150 mm |
| 11 | Overall Height in Closed Position | 2000 mm |
specification for MODEL AGST2020N
| S.no | Specification | UNITS / DIMENSIONS |
|---|---|---|
| 1 | Load Capacity | 2000 Kgs |
| 2 | Lifting Height | 2000 mm |
| 3 | Fork Length | 1150 mm |
| 4 | Fork Arm Width | 620 |
| 5 | Outside Fork Spread | 300 - 850 mm |
| 6 | Inside Fork Spread | Adjustable |
| 7 | Maximum Fork Height | 2000 mm |
| 8 | Minimum Fork Height | 85 mm |
| 9 | Ground Clearance | 35 mm |
| 10 | Fork Width | 150 mm |
| 11 | Overall Height in Closed Position | 2000 mm |
